|5. Unrolling
Tension control is required at a constant level during unrolling.

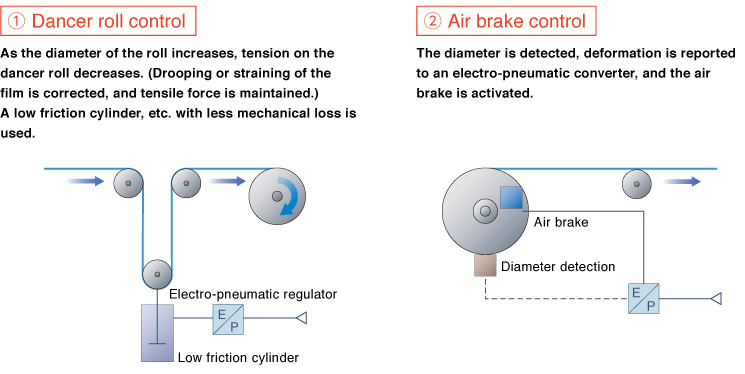

< Example of tension control during rolling and unrolling >
Tension Control
| Use | Item name | Series |
|---|---|---|
| Low-friction control-related equipment |
Low Friction Cylinder (Metal seal type) | MQQ / MQM / MQP |
| Smooth Cylinder | CJ2Y / CM2Y / MBY CA2Y / CS2Y / CQ2Y |
|
| Electro-pneumatic Regulator | ITV0000 / 1000 / 2000 3000 |
|
| Precision Regulator | IR1000 / 2000 / 3000 |
Preventing Attachment of Foreign Objects ⁄ Improved Quality
| Use | Item name | Series |
|---|---|---|
| Anti-static electricity measures |
Ionizer | IZS 40 / 41 / 42 |
| Clean blow | Clean Air Module | LLB |
| Direct Operated 2 Port Solenoid Valve | VX2 | |
| Clean One-touch Fittings (for Blowing) | KP□ | |
| Polyolefin Tubing | TPH |
Clean Room Specifications
| Use | Item name | Series |
|---|---|---|
| Pneumatic equipment for clean room |
Clean Series | Clean Series |
Points and Precautions for Selection
• A low slide-resistance cylinder and a high-precision pressure control are necessary for tension control. Please use in combination
with a low-friction type cylinder and precision regulator or electro-pneumatic regulator.
• When using in a clean area, please select equipment that conforms to clean-room class standards of cleanliness.
